Granite Display

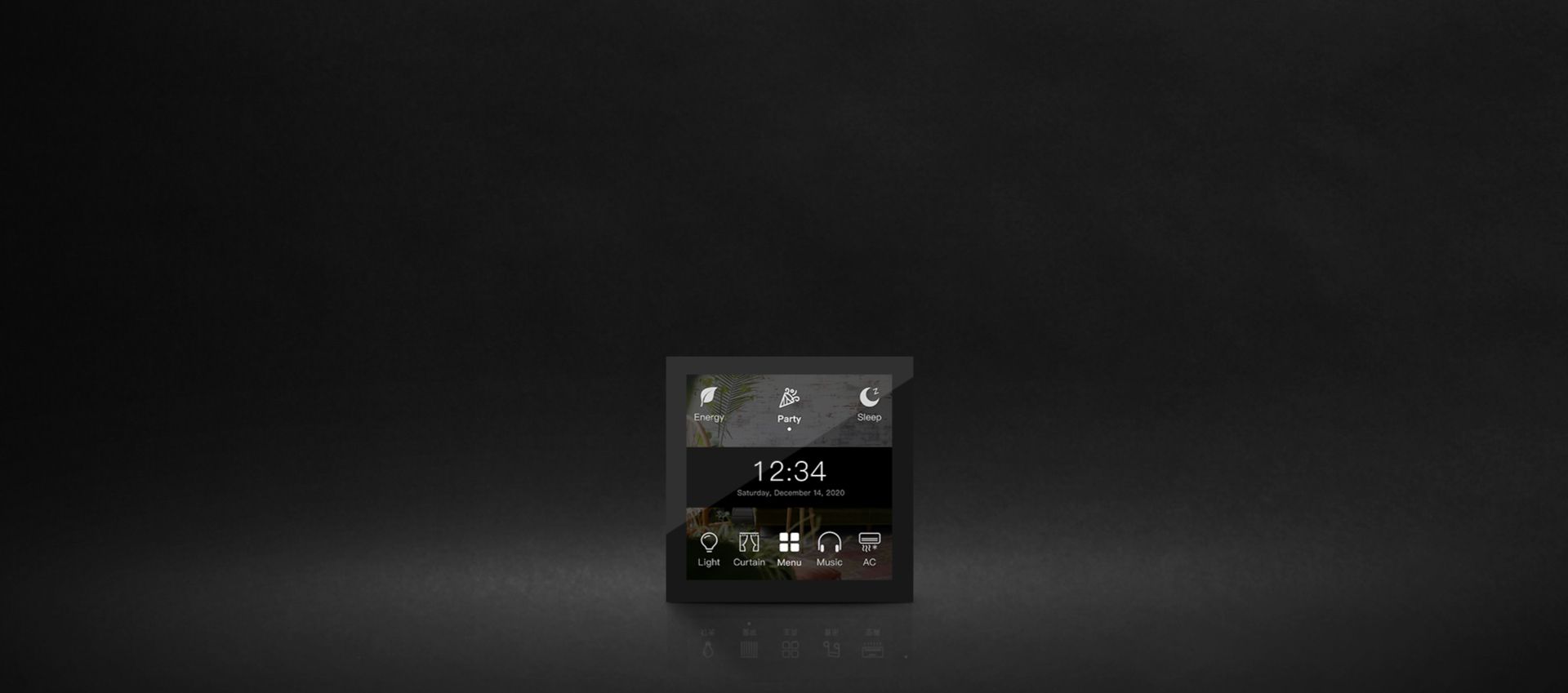

Granite Display is a multifunctional KNX touch-control panel with a 4-inch high-resolution display. You can quickly access the most frequently used functionality or scenes by the short-cut buttons on the home screen. And you may change the short-cut settings as you wish. As you explore more functions on the user interface, you may find it different but comfortable controlling your home devices on Granite Display.

Quick and convenient.

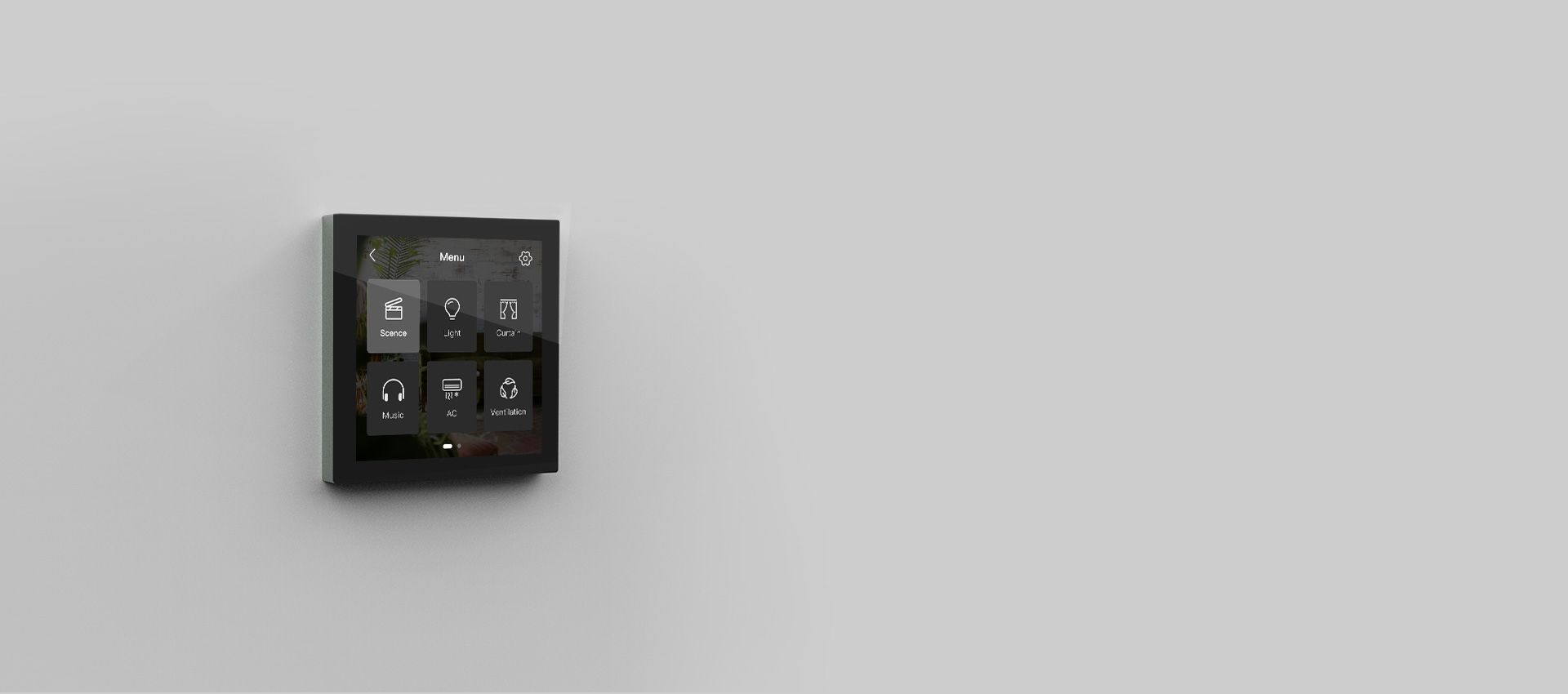

Granite Display has a built-in proximity sensor. When you approach to it, the screen will automatically wake up and the user interface will just be ready for you.

A panel for all functionality.

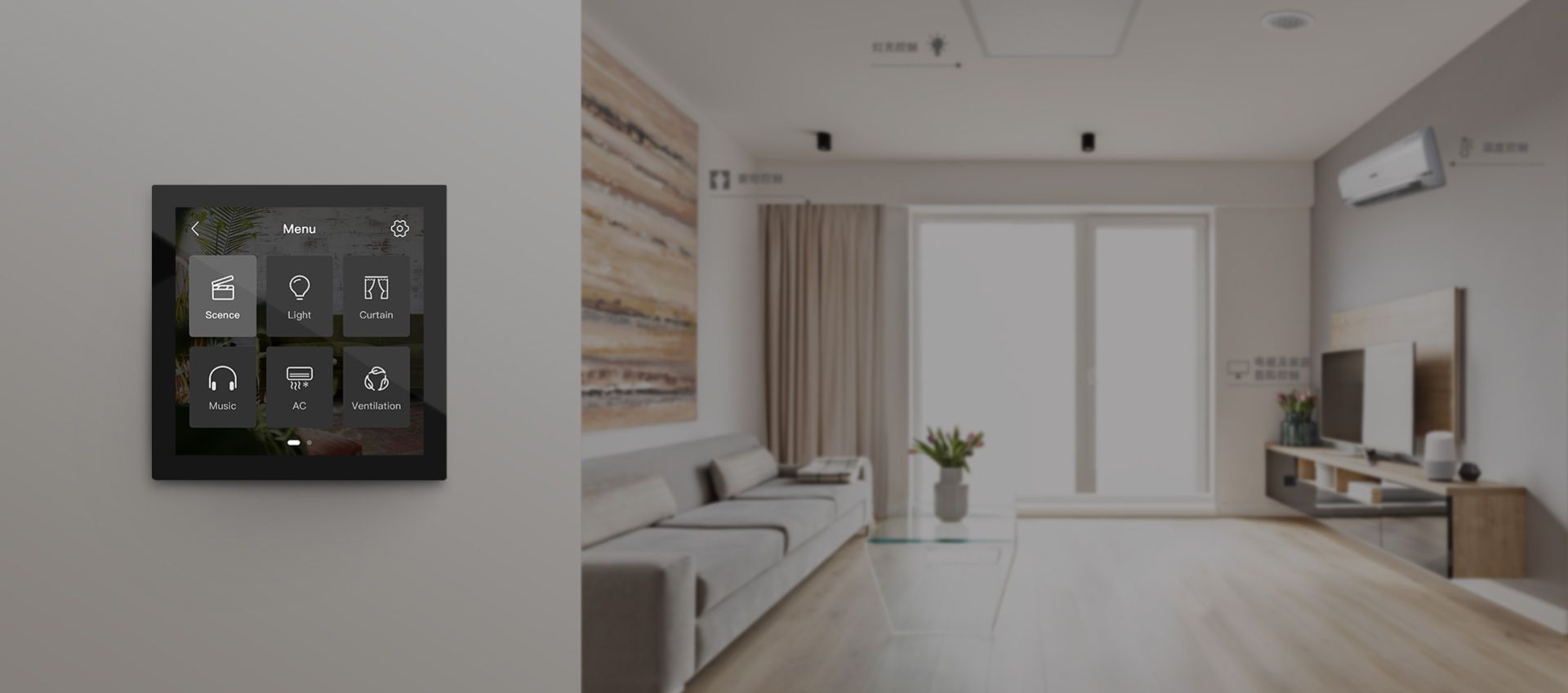

Granite Display helps you control many home devices, such as lights, curtains, modes, HVAC, music, primary air system, etc. Instead of installing a row of switches on the wall, you can just use one KNX Granite Display to control all electric devices and keep the wall in a minimal look at the same time.

Go with the push-button Granite panel.

Granite Display is designed to match with the Granite push-button panel in the same installation. For instance, you may install Granite Display in the living room and use Granite Panel in the bedroom for different functionality. And these two panels, due to their unified appearances, add credits to your home decoration.

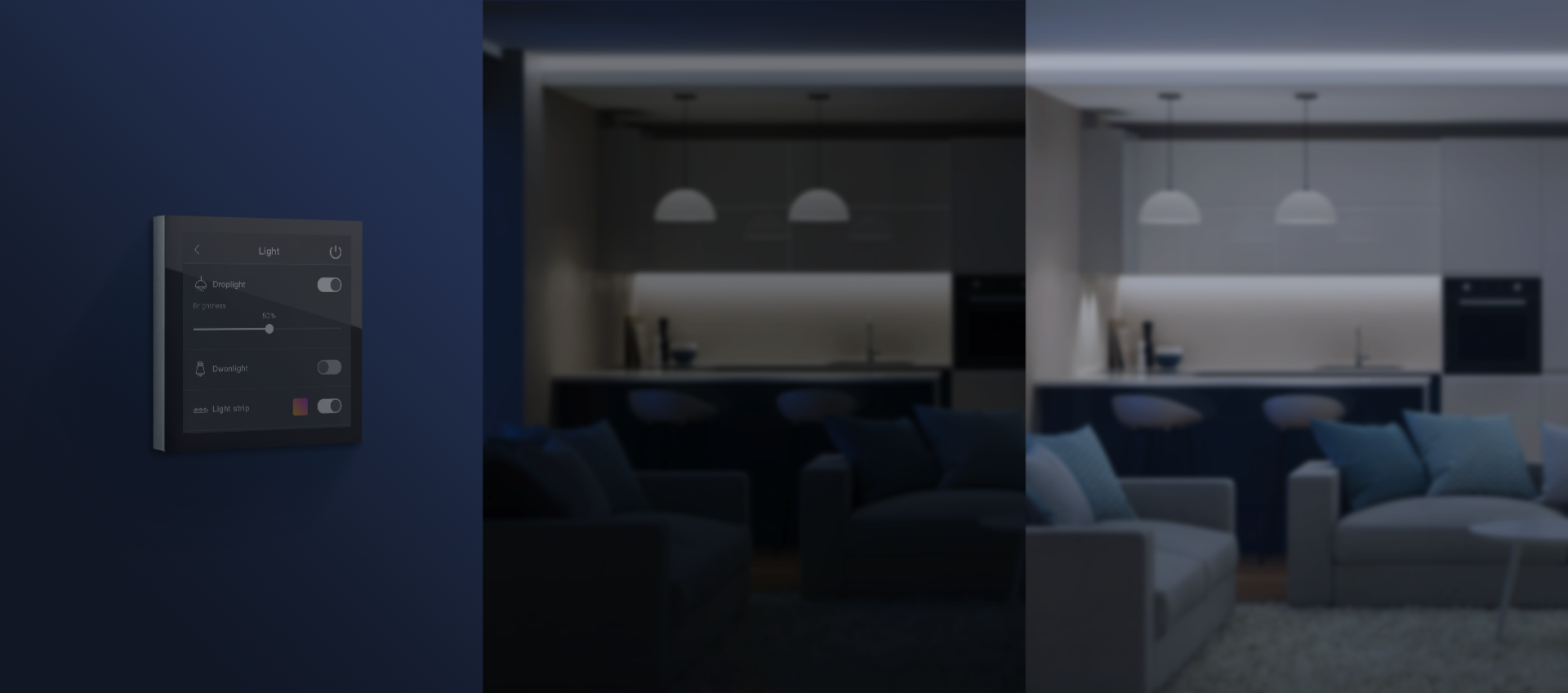

Smooth brightness control.

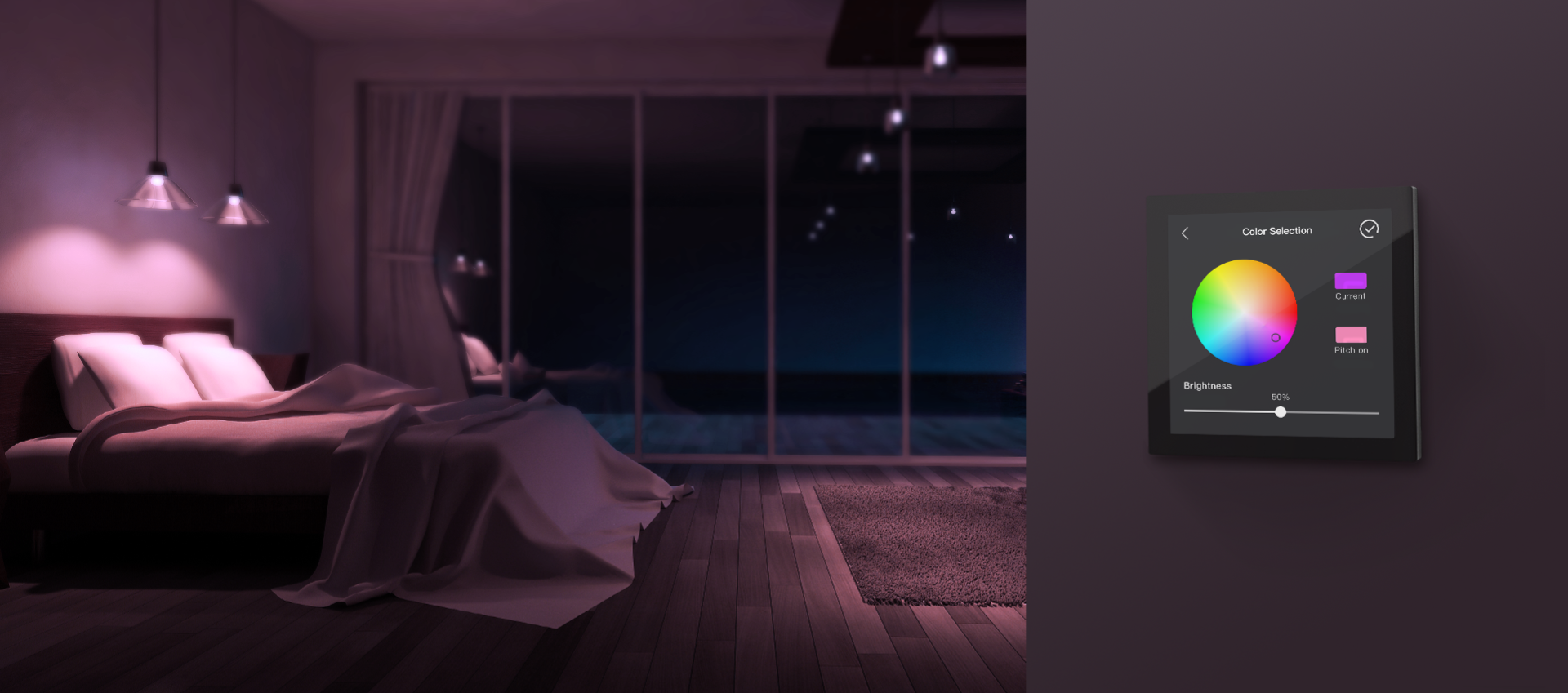

Granite Display allows you to select the color for your lights by directly touching the color disk on the interface. You may simply utilize the KNX display touch by tapping the color or move your finger on the color disk to check the one you want and stop over there.

A wall panel that controls your music.

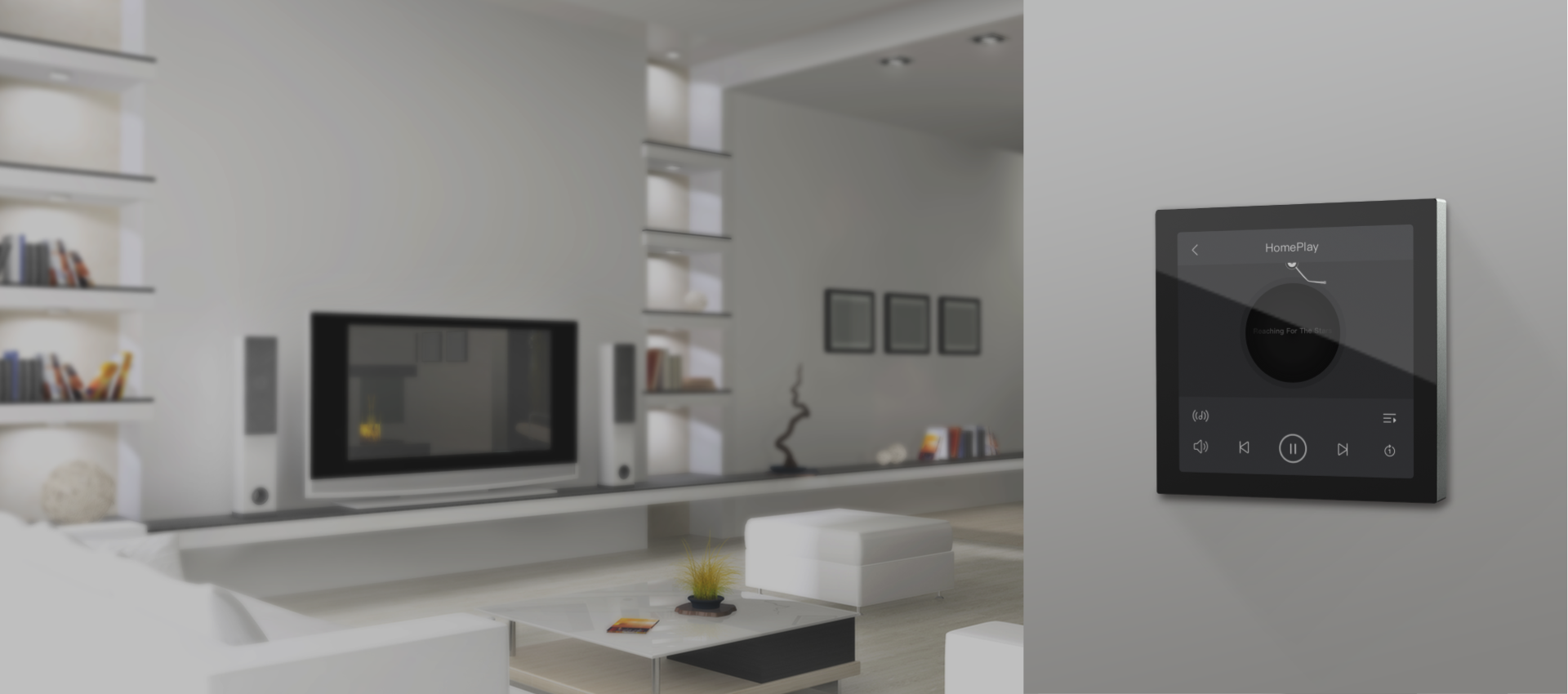

A dedicated music interface is built in the Granite Display. It allows you to choose the music available in your HDL smart home system. You can control your music to playback right after you set the ambient lighting. The same place, save time.

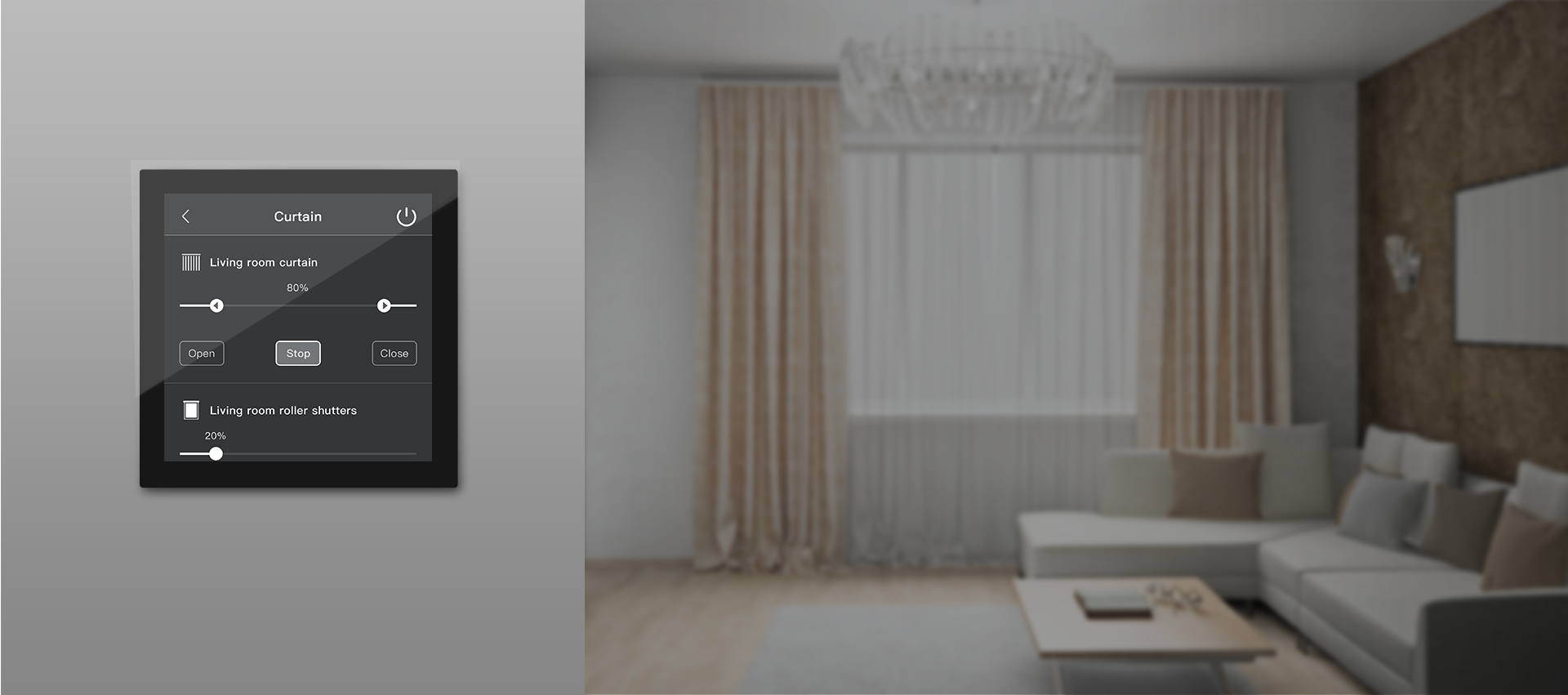

Stop your curtains in any position you want.

Motorized curtains don’t have to be fully open or closed all the time. On Granite Display, you can stop the curtains in the position where enough light is in your building.

Specs

4-inch 720 x 720P HD touch display;

Built-in proximity sensor;

Built-in temperature and humidity sensor;

Adjustable screen backlight brightness;

Available in two colors;

Runs on HDL Buspro protocol or KNX.

KNX Granite Display 4"

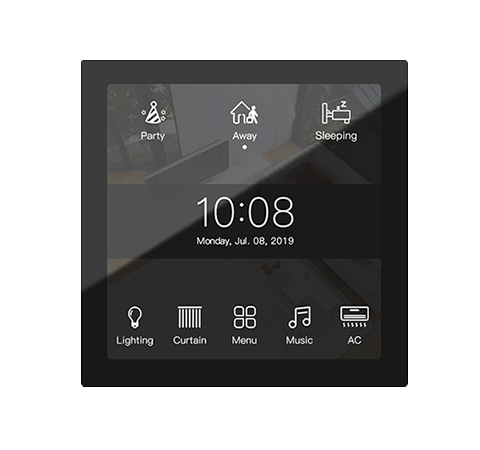

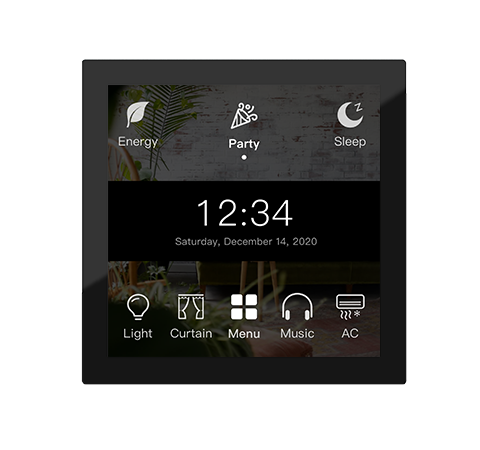

Ashy gray-Arctic silver-black cover

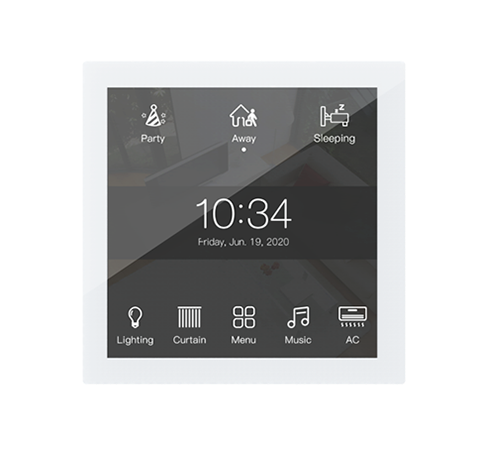

Ashy gray-Arctic silver-whitecover

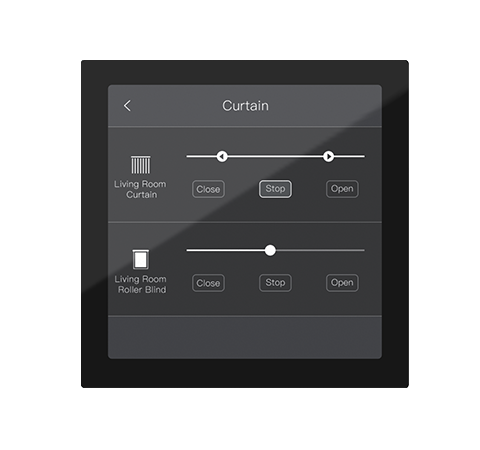

curtain

RGB color

KNX Granite Display 4"

Product code: M/PTL4.1

Working voltage: 21~30V DC

Working current: 12mA/30V DC

Auxiliary voltage: 20~30V DC

Auxiliary current: 108mA/24V DC

Communication: KNX

Cable diameter of KNX terminal: 0.6 - 0.8mm

Working temperature : -5℃~45℃

Working relative humidity : ≤90%

Storage temperature : -20℃~60℃

Storage relative humidity : ≤93%

Housing material :

Datasheet download
