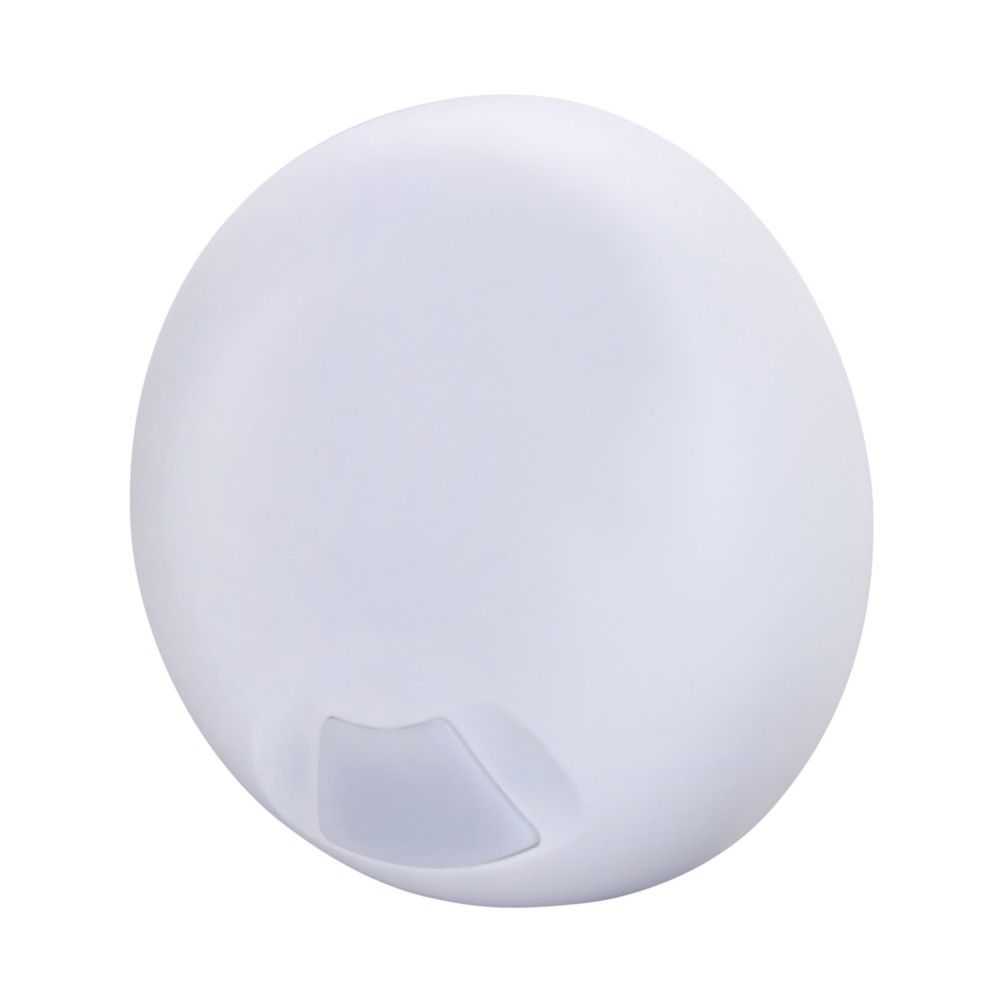

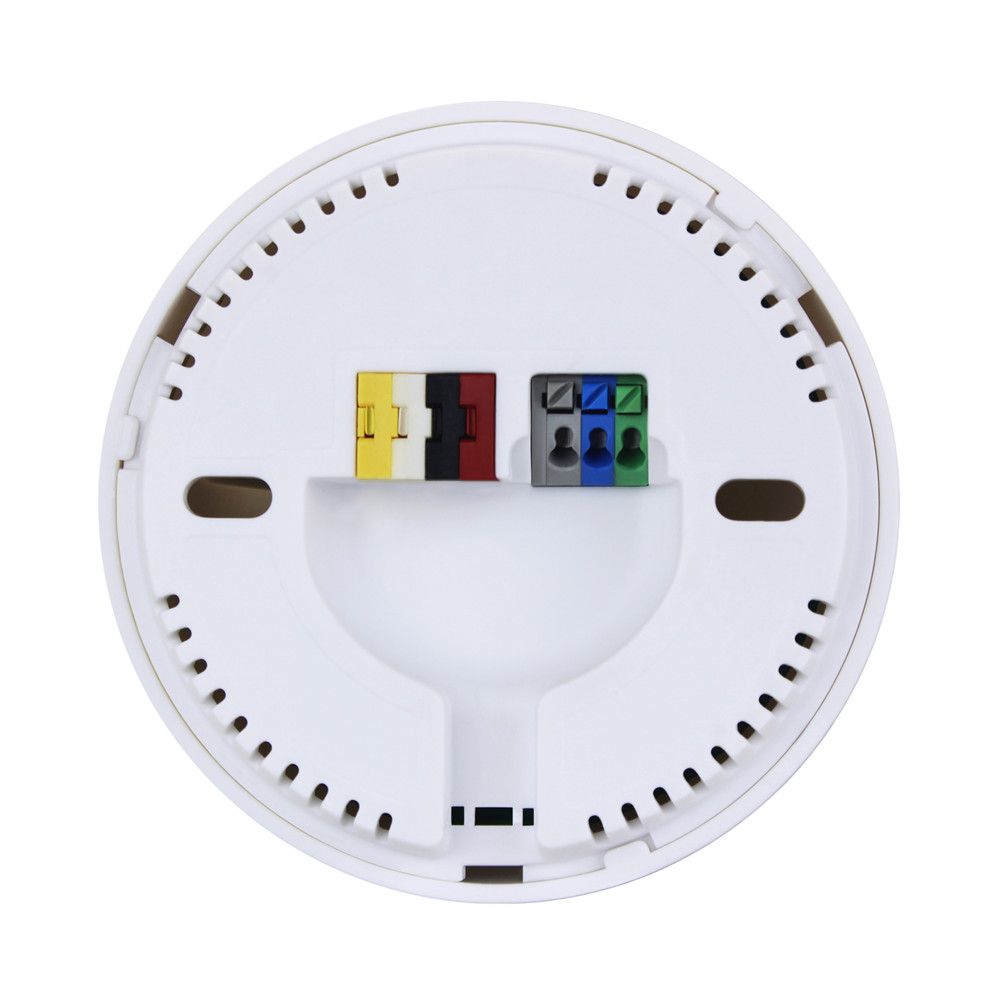

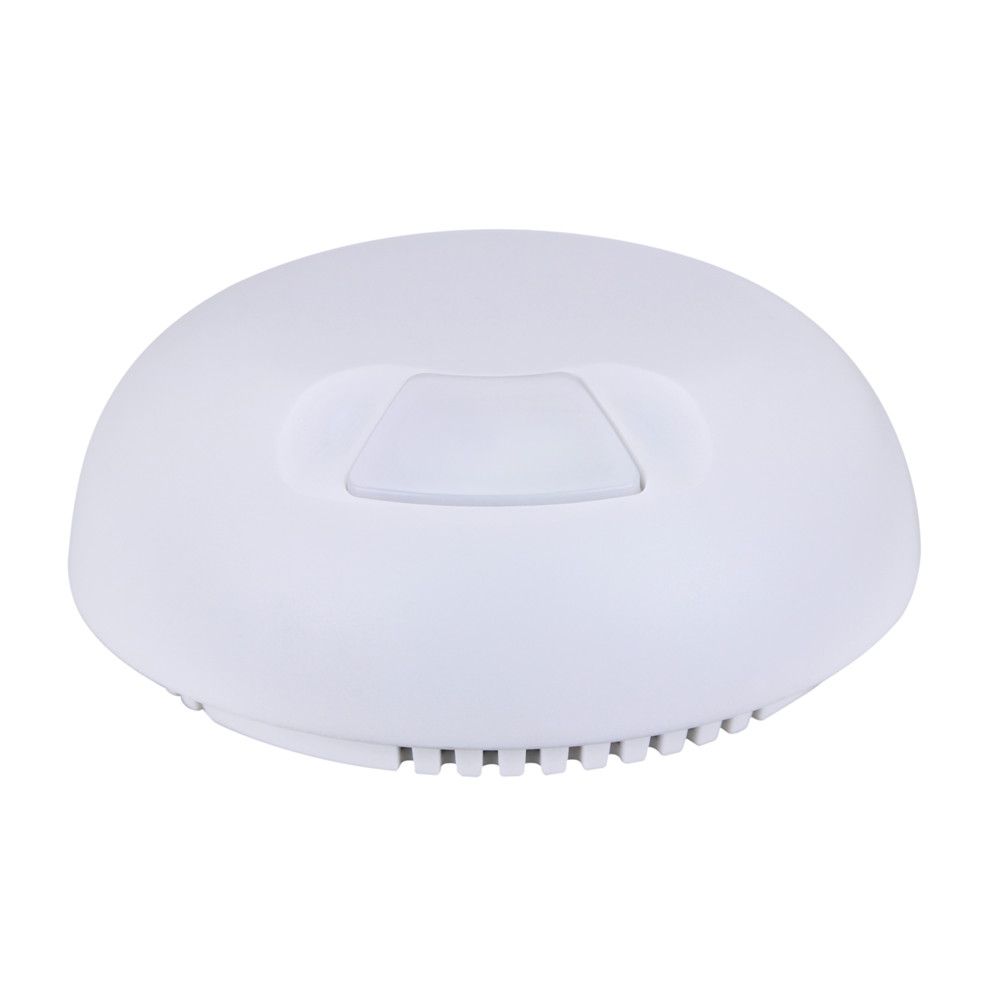

Ceiling Mount Indoor Microwave Sensor
model：HDL-MSW01.4CCeiling Mount Indoor Microwave Sensor includes LUX sensor, microwave sensor, temperature sensor, dry contact, universal switch, which can satisfy different requirements according to different logics. The sensor supports HDL Security mode.
Ceiling Mount Indoor Microwave Sensor includes LUX sensor, microwave sensor, temperature sensor, dry contact, universal switch, which can satisfy different requirements according to different logics. The sensor supports HDL Security mode.
■ Built-in LUX sensor, microwave sensor, temperature sensor, dry contact, universal switch.
■ Two logical relations: OR, AND.
■ It has 24 logic blocks, Both true logic and false logic can trigger the targets respectively. Each logic can set 20 targets.
■ Microwave sensitivity range: 1-100.
■ Each logic supports trigger delay time from 0 to 3600s.
■ The range of universal switch number in logic is 201-248, each logic has 2 universal switch numbers.
■ Support security function
■ Support online update
Basic Parameters
Working voltage 12~30V DC
Working current 32mA/24V DC
Temperature detection range -40°C~60°C
Illumination detection range 0~5000LUX
Microwave detection range
Major axis direction: Φ10m
Minor axis direction: Φ5m
(Installation height: 3m)
External Environment
Working temperature -20°C~45°C
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions Φ84.5mm×32mm
Net weight 67.5g
Housing material ABS
Installation
Ceiling mount
Protection rating (Compliant with EN 60529) IP20
