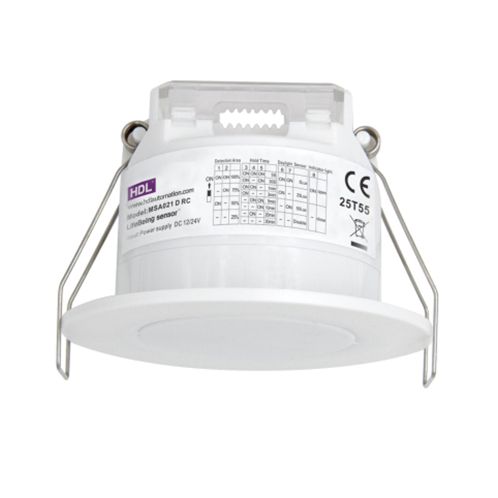

LifeBeing sensor
model：MSA021D RCThe sensor detects human walking, slight motion(such as body movement, turn up head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
The sensor detects human walking, slight motion(such as body movement, turn up head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
1) Adopt LifeBeing detected technology, which can detect movement, slight motion and breathing signal.
2) 12/24Vdc input, and dry contact output.
3) Built-in daylight sensor for energy saving.
4) Support flush mounting installation.
5) All parameters can be set via DIP switch & remote control.
6) Low impedance antenna for environmental adaptation
7) 5 years warranty.
Rated voltage 12V-24V DC±0.5V
Stand-by power 0.5W
Working Mode dry contact, normal open
Load Capacity Resistive (36V DC ,50mA Max)
Operating frequency 5.8 GHz ±75 MHz, ISM band.
Transmitting power 0.3mW Max.
Hold time 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/25lux/50lux/Disable
Detection range (radius) Movement: 3-4m (Speed: 0.3m/s) Slight motion: 3-4m Breathing: 2-3m
Mounting height 2.5-4m
Detecting Angle 120
