KNX Granite Display 4.3"

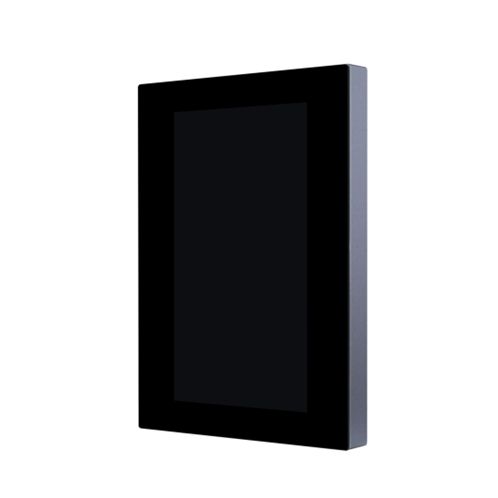

model：M/PTL43.1KNX Granite 4.3" is a high-end and multi-function control panel for home automation. With 4.3-inch LCD screen and full-screen touch control, it is convenient for the users to control devices of lighting, curtain, scene, AC/FCU, floor heating, music and fresh air in an intuitive way.
KNX Granite 4.3" is a high-end and multi-function control panel for home automation. With 4.3-inch LCD screen and full-screen touch control, it is convenient for the users to control devices of lighting, curtain, scene, AC/FCU, floor heating, music and fresh air in an intuitive way.
-

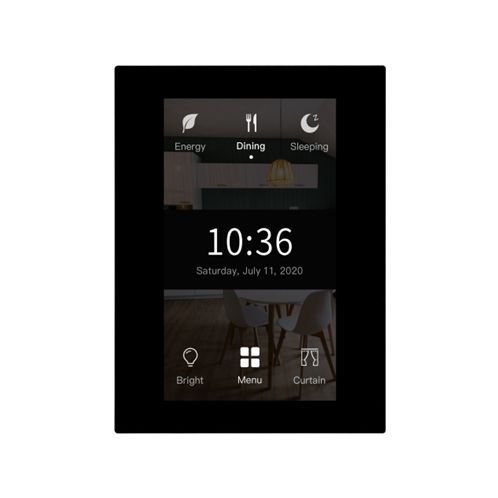

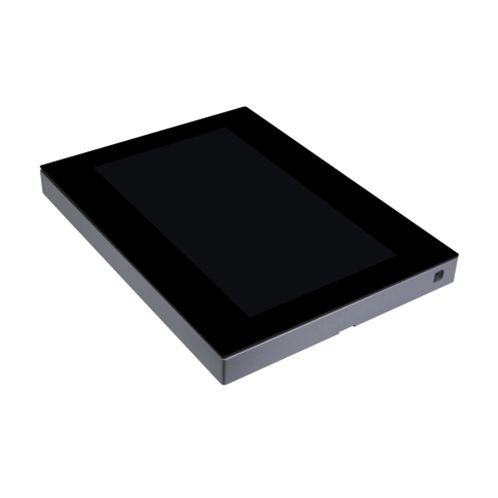

The factory default panel is portrait display and can be set to landscape display on the setting page. (when the engineer installs and debugs)
-
Built-in temperature and humidity sensor
-
Built-in proximity sensor, when the panel detects someone (maximum sensing distance: 20~30cm), the LCD
-
screen will wake up.
-
Adjustable LCD backlight
-
LCD screen wakes up automatically.
-
Screen lock setting
-

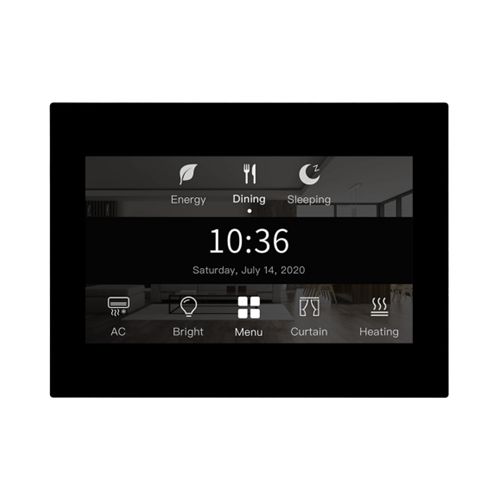

3 shortcut scene buttons, 2 function navigation buttons (vertical screen)/4 function navigation buttons (horizontal
-
screen), and 1 main menu button available in main interface
-
Time and environment status display setting
-
Dedicated pages for lighting, curtain, scene, AC/FCU, floor heating, music and fresh air control
Working voltage 21~30V DC
Working current 15mA/30V DC
Auxiliary voltage 20~30V DC
Auxiliary current 110mA/24V DC
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
