■ Built-in temperature and humidity sensor

■ Built-in proximity sensor, when the panel detects human body, the LCD screen will wake up.

■ Adjustable LCD backlight

■ LCD screen wakes up automatically.

■ Screen lock setting

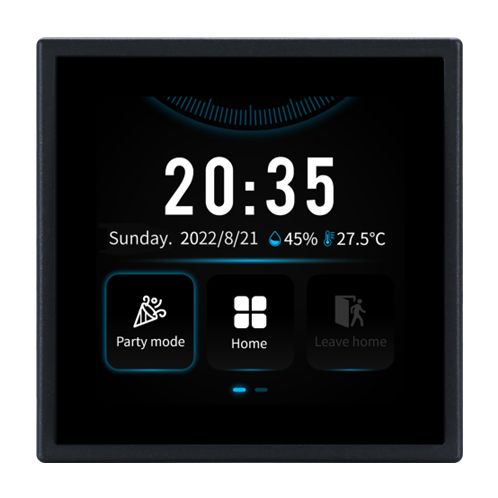

■ 5 scene shortcut buttons and 1 main menu button available in main interface

■ Time and environment status display setting

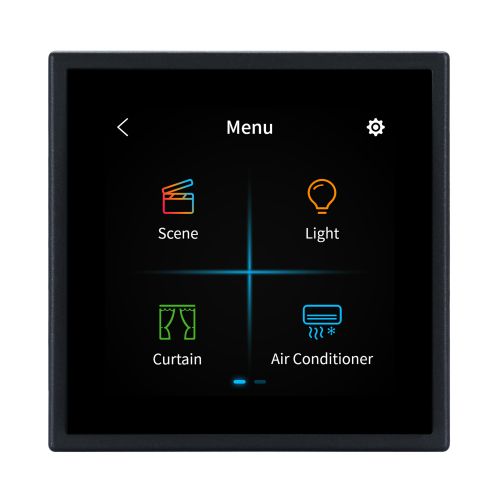

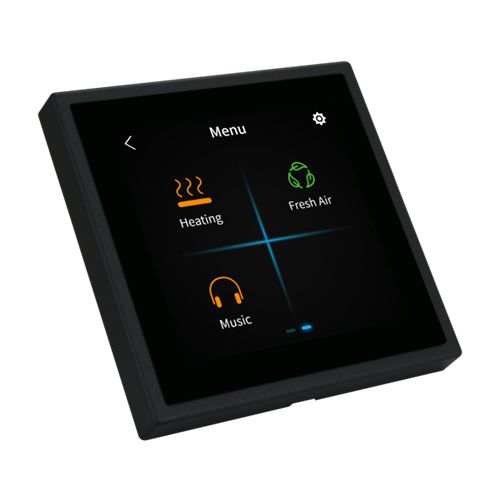

■ Dedicated pages for lighting, curtain, scene, AC/FCU, floor heating, music and fresh air control

■ A total of 20 control keys can be set on the lighting page. The control types are: Switch, dimmer, RGB and CCT.

■ Curtain control: up to 8 curtains supported. Supports opening/closing, stopping, percentage adjustment

■ Scene control: up to 20 scenes supported

■ AC/FCU control: Supports switching, temperature adjustment, fan speed adjustment, mode switching of up to 3 AC/FCU

■ Floor heating control: Supports switching, temperature adjustment, mode switching of up to 8 floor heating control, Floor heating modes: Normal, Day, Night, Away, Timer.

■ Music play: 1 music player supported, list not supported (source switching not supported)

■ Fresh air control: Supports switching, fan speed adjustment, mode switching of 1 fresh air control

Basic Parameters

Working voltage 21~30V DC

Working current 11mA/30V DC

Auxiliary voltage 20~30V DC

Auxiliary current 90mA/24V DC
